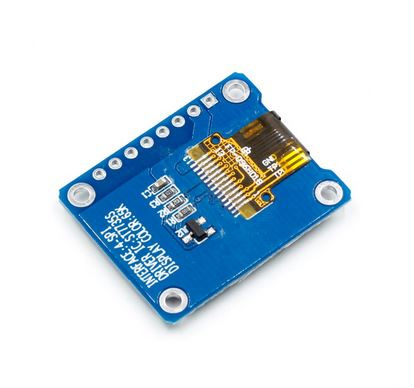

0.96 inch 7P SPI HD 65K Full Color LCD Module
Artikelnummer: 540300096-01
€ 6,50
(inclusief btw)
IPS 0.96 inch 7P SPI HD 65K Full Color LCD Module ST7735 Drive IC 80*160 (Not OLED)
Size: 0.96 inches
size of the dot matrix: 80 * 160 (you can adjust the direction of the screen, horizontal screen and vertical screen are fine)
LCD Color: 65K Full color
Hardware Interface: SPI Interface
IC controller: ST7735
Working temperature: -20-70
Working power supply: 3.3 V
PIN NO: 13Pin
Display area: 10.8 * 21.696mm
Size: 13.3 * 27.95mm
Display direction: full viewing angle (IPS)
