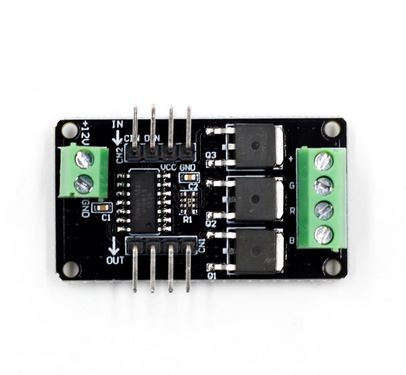

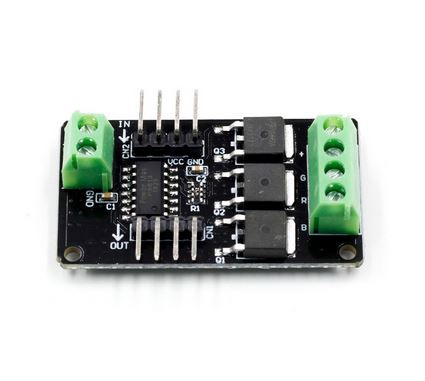

LED Strip Driver Module STM32 Full Color RGB

Based on a P9813; all the lights of the transmission module can be cascaded; only two signal lines and two power cables can control a full-color light bar (RGB). more transmission modules can also be used to control more light bars; simply set the program of red, green and blue corresponding to that of the corresponding channel; Widely used in the room and decoration of the other handrail; Suitable for 5V MCU system for Arduino UNO R3 and its compatible with motherboard

Features:

The power supply of the controller interface for MCU is 4.5 ~ 5.5VDC;

The external power supply is 12 VDC;

Waterfall;

It can drive 5 meters of LED strip RGB (72 W max.);

4x M2 screws positioning holes for easy installation;
